Silicon Carbide Ceramics for Demanding Industrial Components
Silicon Carbide Component Forms and Starting Geometries
C-CERAMIC Manufacturing Capabilities
C-CERAMIC exists to help industrial teams turn demanding ceramic part requirements into production-ready components. Our ceramic manufacturing capabilities bring material and design review, mold making, forming, high-temperature sintering, machining, finishing and inspection into one coordinated engineering workflow.
From silicon carbide, zirconia, alumina and silicon nitride components to project-specific technical ceramic selections, we support prototypes, low-volume runs and scalable production. Our platform includes ceramic injection molding, precision grinding, lapping, CNC ceramic machining and final dimensional inspection for parts built around real operating conditions.
What differentiates C-CERAMIC is continuity from the first drawing through contract manufacturing. Engineering, process selection and finishing are aligned around the same component requirements, helping OEM, R&D and procurement teams source pins, seals, plates, tubes, nozzles and other custom ceramic parts with a clear path to production.
SiC Components Shaped by Their Working Environment

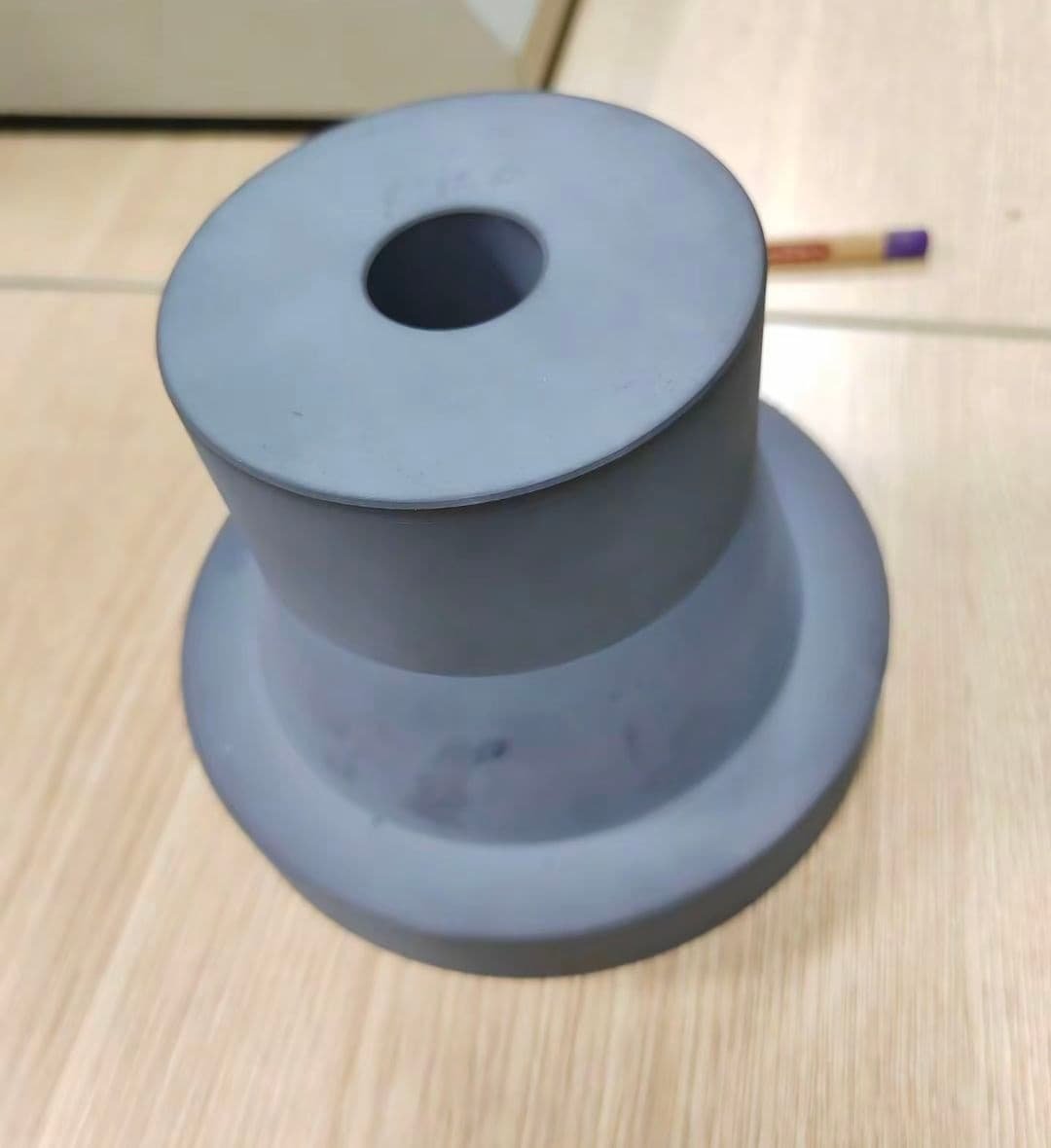

INDUSTRY Equipment

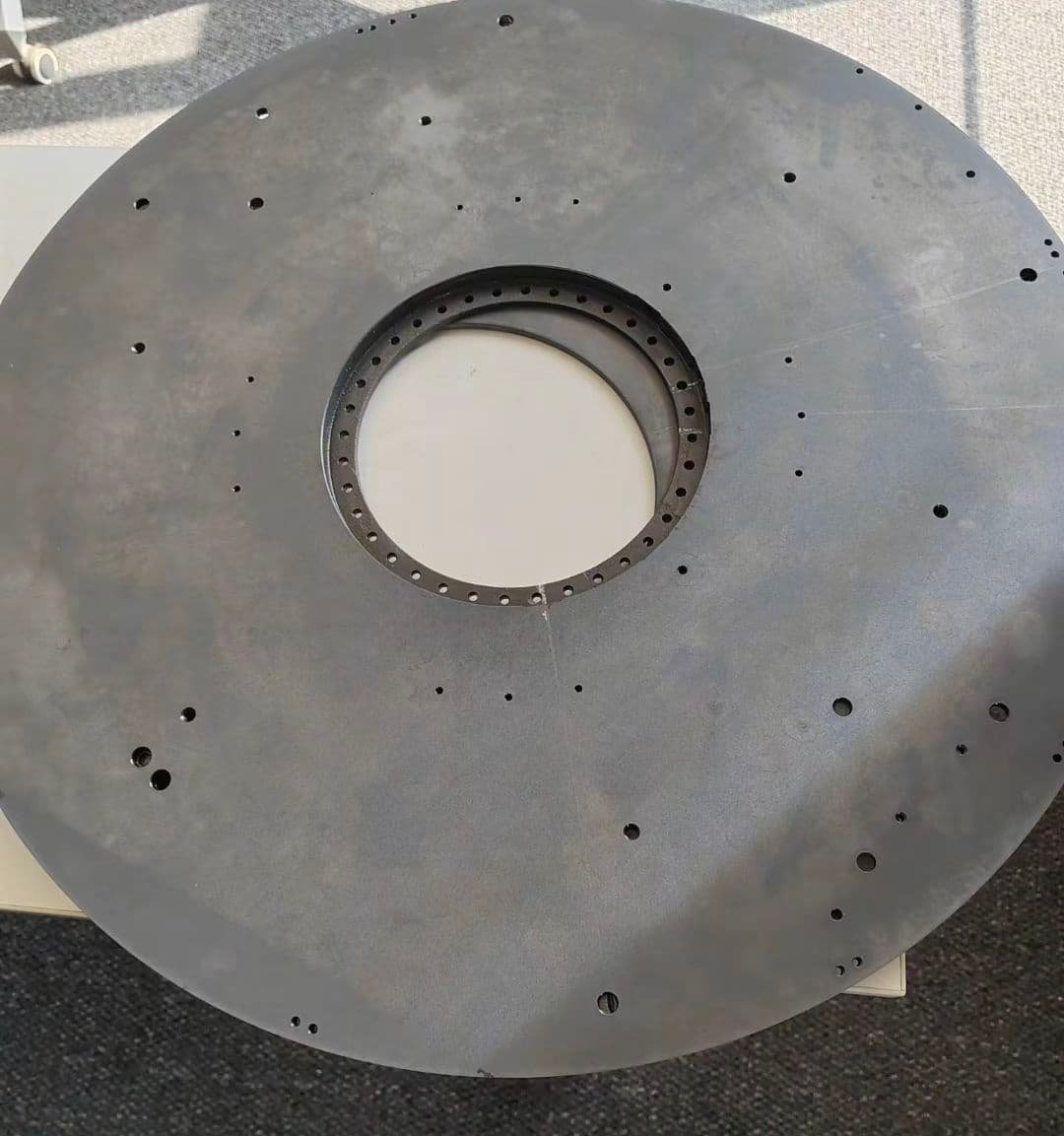

Silicon carbide components may be reviewed for process hardware, handling, insulation or wear roles where geometry, surface condition and thermal exposure must be controlled.
- Process-environment and surface review
- Drawing-led inspection of critical interfaces
- Prototype evaluation before repeat supply
Industrial Machinery

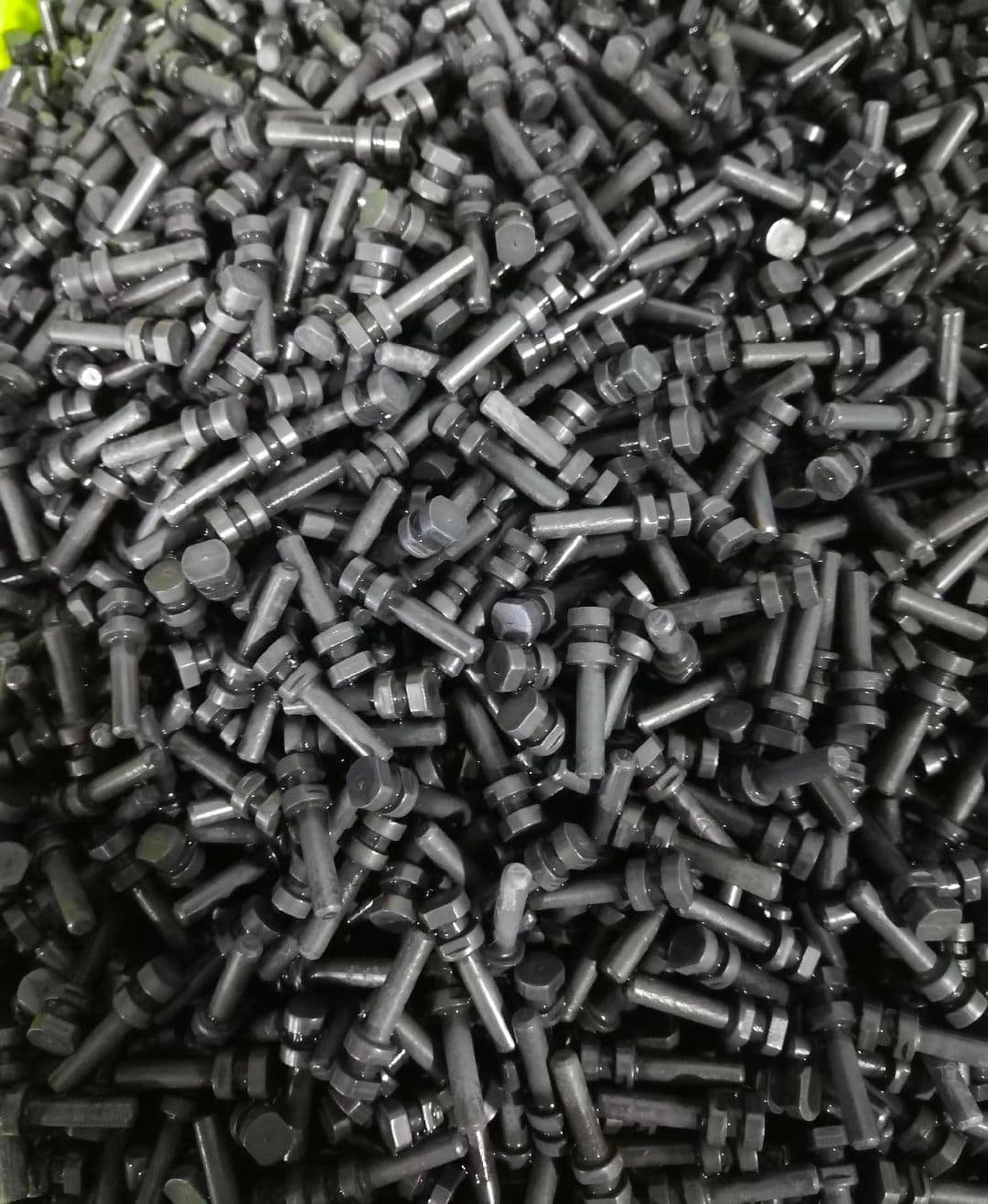

Pins, guides, sleeves, plates and wear components can be assessed for friction, abrasion, alignment, contact loading and stable motion.
- Wear interfaces reviewed at the design stage
- CNC, grinding and lapping assessed conditionally
- Inspection focused on assembly-critical features
A Practical Guide to Sourcing Silicon Carbide Ceramic Components
Define the Silicon Carbide Component and Operating Duty

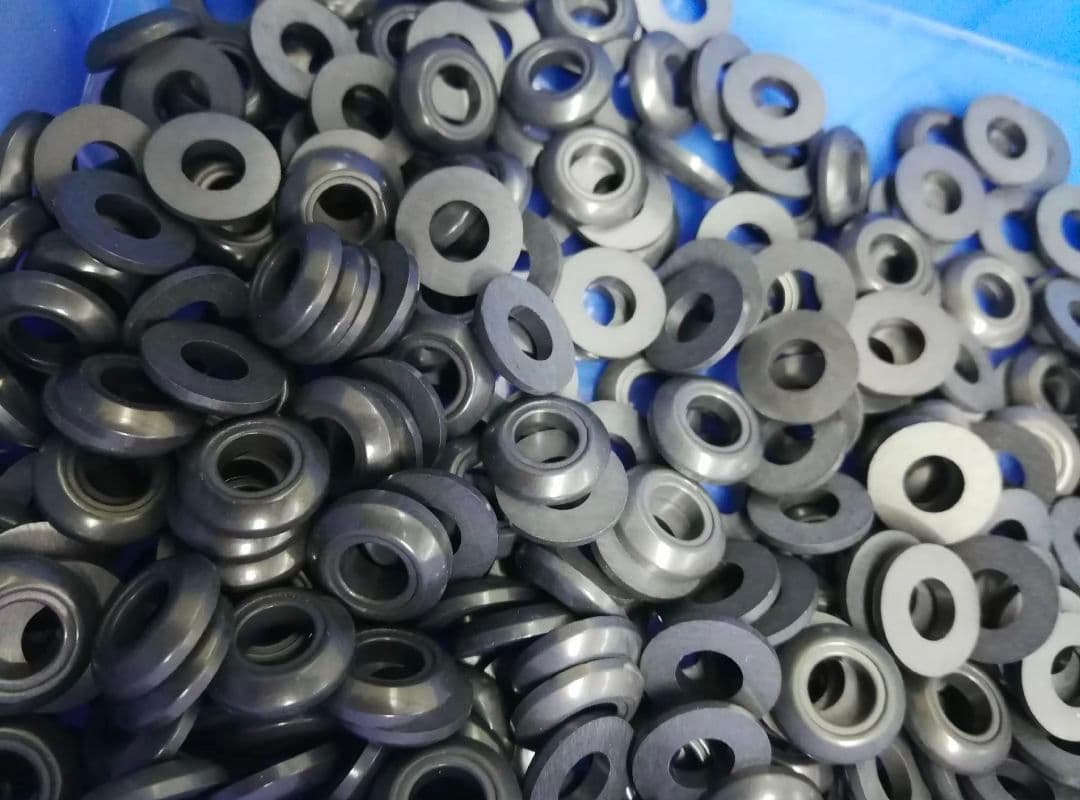

Begin with the part’s job, not only its material label. Identify whether the silicon carbide component is a seal ring, nozzle, tube, plate, disc, crucible, pin, shaft, piston or another drawing-based geometry. Record the working temperature range, heating and cooling pattern, atmosphere, fluid or chemical media, abrasive exposure, contact loads, sliding conditions and expected service cycle. Note how the part is supported, clamped or mated, because brittle ceramics can be affected by concentrated loading and poor edge protection. Mark sealing faces, locating datums, apertures, threads, slots and surfaces that contact other materials. Separate essential requirements from preferred features so the supplier can assess tradeoffs. State the expected annual quantity, batch size and prototype need, while avoiding assumed lead times or capacity claims. A useful RFQ also identifies failure consequences: leakage, misalignment, particle generation, wear, thermal cracking or dimensional drift. These inputs allow C-CERAMIC to review silicon carbide suitability, alternative ceramic families, forming options, finishing access and inspection scope. If the duty cycle is uncertain, provide the best available operating envelope and identify assumptions requiring confirmation during engineering review.
Choose Silicon Carbide Material and Compatible Interfaces
“Silicon carbide” is a starting point for review, not a complete procurement specification. Ask the supplier to confirm the proposed material condition, processing route and any relevant composition or finishing implications against the application. The selection should consider thermal exposure, corrosion or chemical contact, abrasion, friction, electrical role, dimensional behavior and the required surface condition. Interfaces deserve equal attention. Define mating metals, ceramics, coatings, seals, fasteners and support structures, together with fit, clearance, contact pressure and thermal expansion concerns. A silicon carbide seal ring may require a different surface and edge strategy from a nozzle or wear plate. For fluid-handling parts, identify the media, pressure conditions, flow path and contamination concerns without assuming a performance guarantee. For heated components, describe atmosphere and cycling rather than relying on a generic temperature label. If another ceramic such as alumina or silicon nitride could solve a specific constraint, request a conditional comparison with clear tradeoffs. The quotation should distinguish confirmed requirements from proposed assumptions and should state which material evidence, sample review or process documentation will be supplied for approval.
Review Silicon Carbide Geometry and Manufacturing Routes
Silicon carbide geometry should be reviewed together with its forming and finishing route. Simple plates, discs or rings may permit a different approach from a thin-wall tube, deep crucible, multi-hole nozzle or shaft with tight functional interfaces. Discuss wall transitions, internal corners, unsupported projections, holes, slots, undercuts, edge protection and areas that tools cannot reach. Forming can introduce shrinkage and dimensional variation, while high-temperature sintering changes the as-formed geometry; the supplier should explain how these effects will be allowed for in the process. Injection molding may be considered conditionally for repeat complex parts, but tooling, debinding, wall balance, shrinkage and forecast quantity must justify it. For prototypes or low volumes, alternative forming and post-sinter machining routes may be more practical. CNC machining, grinding and lapping should be assigned only to features that need them, because access and allowance affect risk and quotation. Ask for a manufacturability review that maps each critical feature to a process step and identifies brittle handling points. This creates a clearer basis for comparing prototype, low-volume and production routes.
Set Silicon Carbide Inspection and Acceptance Criteria
Inspection requirements should be written around function, not a generic statement that the part will be checked. Identify drawing datums, critical dimensions, fits, flatness, concentricity, wall thickness, apertures, sealing faces, edge conditions and surface requirements. Explain which characteristics affect assembly, flow, wear, alignment, insulation or containment. Silicon carbide parts may require careful handling during measurement because chips, scratches and edge damage can influence acceptance or later service. Ask the supplier to confirm how dimensional change from forming and sintering will be managed, which features will be inspected after grinding or lapping, and whether measurement access is practical. Define the expected inspection evidence before quotation: for example, a dimensional report for selected characteristics, visual review, material or process records, or sample approval. Do not request unspecified certifications as a substitute for a project acceptance plan. Where a critical characteristic is difficult to measure directly, agree a practical method and sampling approach. The final criteria should distinguish mandatory drawing requirements, agreed process controls and informational checks. This helps C-CERAMIC price the real quality workload and reduces disputes over what constitutes an acceptable silicon carbide component.
Compare Silicon Carbide Prototype and Production Quotations
Compare quotations by route, assumptions and evidence, not only by unit price. A prototype quotation may use a flexible forming method, manual handling or limited finishing, while a repeat-production quotation may depend on tooling, process stabilization and a different inspection plan. Ask each proposal to identify the silicon carbide material condition, forming method, sintering stage, post-sinter operations, expected inspection scope, packing approach and any excluded work. Separate one-time tooling or development charges from recurring part costs, and confirm whether setup, fixture, grinding, lapping, documentation or sample approval is included. Check that the quoted quantity reflects your intended batch or annual demand and that minimum order assumptions are stated rather than implied. Review which tolerances and surfaces are treated as critical, since broad drawing requirements can create avoidable cost or feasibility risk. If the supplier proposes an alternative material or process, request the reason and the tradeoff in geometry, wear, thermal behavior, finish, risk or qualification effort. Delivery timing and production capacity should be confirmed only after drawing and process review. A transparent quotation makes later changes easier to control and gives procurement a defensible basis for supplier comparison.
Prepare a Complete Silicon Carbide RFQ and Qualification Plan
A complete silicon carbide RFQ should give the supplier enough information to test feasibility without forcing hidden assumptions. Include the latest drawing revision, 3D model when useful, material preference, component form, quantity by phase, operating envelope, mating parts, critical characteristics, surface requirements, packing concerns and required documentation. Identify whether the part is a prototype, replacement, low-volume production item or repeat program. Request a written review of forming, sintering, machining, grinding, lapping and inspection, including risks associated with shrinkage, thin sections, inaccessible features and brittle edges. Define how samples will be approved: dimensional checks, fit trials, functional testing performed by the buyer, visual criteria or another agreed method. Keep regulatory or sector claims separate from the technical requirement; C-CERAMIC should not be assumed to provide compliance guarantees that have not been documented for the project. Establish change-control expectations for material condition, tooling, process sequence and inspection method. A staged qualification plan can begin with design review, continue through prototype or low-volume parts, and then move to repeat supply after acceptance. This structure helps engineering, quality and procurement evaluate the same silicon carbide evidence.
