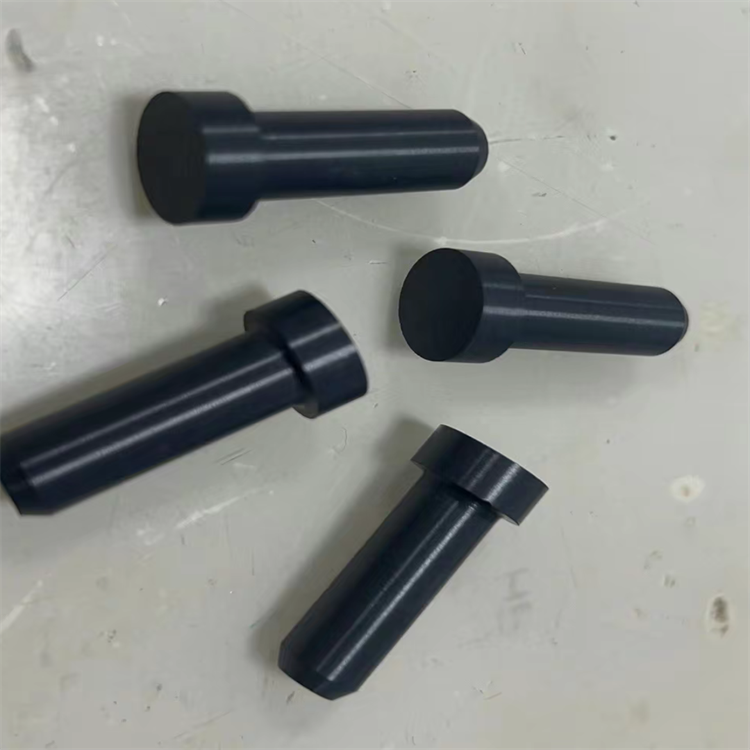

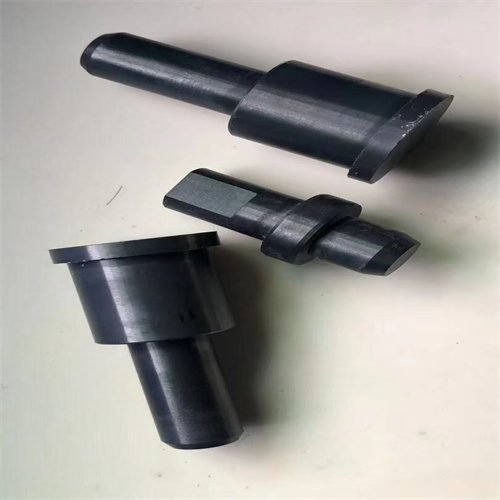

Silicon Carbide Ceramic Pin

Silicon carbide ceramic pin

Silicon carbide ceramics have excellent mechanical properties,excellent oxidation resistance,high abrasion resistance and low friction coefficient.

Features of Silicon carbide ceramic pin:

1.High temperature resistance

Silicon carbide ceramic pin have high temperature resistance.Reaction-sintered silicon carbide can be used at 1300 degrees, while pressureless sintered silicon carbide can reach 1600 degrees.

2.Corrosion resistance

Silicon carbide ceramic is an inorganic non-metallic material, its strong corrosion resistance can withstand high concentrations of acid and alkali corrosion,

which makes its use environment and application fields very wide.

3.Abrasion resistance

Mechanical proferties:

※Density: 3.1g/cm3

※Compressive strength: 2600Mpa

※Flexural strength: 410Mpa

※Vickers hardness: 2500 H0.5

※Elastic modulus: 410Gpa

※Thermal shock stability: 350ΔT°C



Production process:

Application of Silicon carbide ceramic pin:

※High-temperature heating elements

※Electronic insulators

※Semiconductor parts

※Ball bearing and roller guide

※Plungers and shaft in wear resist environments

※Aluminum electrolytic cell

※Copper melting furnace lining

※Grinding wheel industry

※Machine mechanical seals

※Abrasive and wear resist material



Shipping:

C-Ceramic is your silicon carbide ceramic partner for all your advance ceramic and technical ceramic machining.Welcome to contact us.
